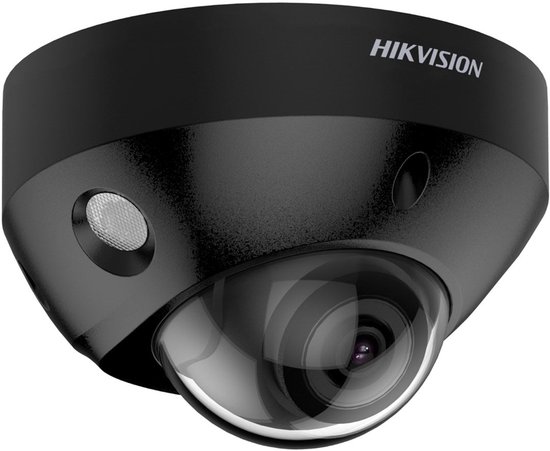

Model: Hikvision DS-2CD2547G2-LS(2.8mm)4 MP ColorVu Fixed Mini Dome Network CameraFeatures High quality imaging with 4 MP resolution Efficient H.265+ compression technology Clear imaging against strong back light due to 130 dB WDR technology 24/7 colorful imaging Focus on human and vehicle classification based on deep learning -S: audio and alarm interface available Water and dust resistant (IP67) and vandal resistant (IK08)SpecificationsCamera Image Sensor: 1/1.8 Progressive Scan CMOS Max. Resolution: 2688 × 1520 Shutter Speed: 1/3 s to 1/100,000 s Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Day & Night: 24/7 Color imaging Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°Lens Lens Type: Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV: 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° Lens Mount: M16 Iris Type: Fixed Aperture: F1.0 Depth Of Field: 2.8 mm: 2.3 m to ∞DORI DORI 2.8 mm: D: 58 m O: 23 m R: 11 m I: 6 mIlluminator Supplement Light Type: White Light Supplement Light Range: Up to 30 m Smart Supplement Light: YesVideo Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding Region Of Interest (ROI): 1 fixed region for main stream and sub-streamAudio Environment Noise Filtering: Yes Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)Network Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP User/Host: Up to 32 users. 3 user levels: administrator, operator and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+Image Wide Dynamic Range (WDR): 130 dB SNR: ≥ 52 dB Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR Image Parameters Switch: Yes Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserInterface Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB Built-In Microphone: Yes Audio LS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm LS: 1 input, 1 output (max. 12 VDC, 20 mA) Reset Key: YesEvent Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detectionDeep Learning Function Face Capture: Yes Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by
