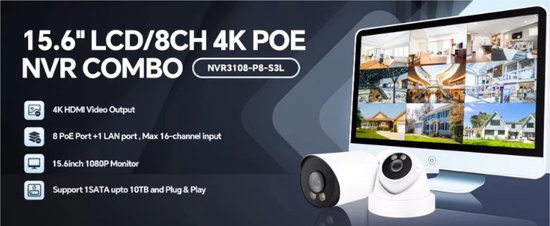

JL - 8CH 4K POE 15.6'' LCD NVR COMBO
Merk: Techpoint, bekijk ook andere Techpoint Beveiligingscamera-accessoires
€ 680,00
- 1 - 3 weken
- Inclusief verzendkosten
- Ophalen bij een afhaalpunt mogelijk
- 30 dagen bedenktijd en gratis retourneren
- Dag en nacht klantenservice
Productomschrijving
Model NVR3108-P8-S3JL Decoding Decoding Format Ultra 265, H.265, H.264 Decoding Capability 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 Audio Compression G.711A, G.711U Network Incoming Bandwidth 64Mbps Outgoing Bandwidth 48Mbps Remote Users 128 Protocols TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SMTP;RTSP Browser(Plugin) Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) Display Monitor 15.6’’ LCD Screen(Resolution:1080P) Video/Audio Input IP Video Input 8 ch Video/Audio Output Description HD-MI Output HD-MI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz RCA Audio Output 1 ch Liveview Display 1/4/6/8/9 Corridor Mode Screen 3/4/5/7/9 Snapshot FTP/Schedule/Event Snapshot 1ch snapshot, up to D1 resolution Recording Description Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF Synchronous Playback in Local 8ch Smart VCA Detection by IPC Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD) VCA Search Behavior Search Smart by IPC Total 4 ch(Face Detection, SIP, UMD) Alarm General Alarm Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection Alert Alarm IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot
Abnormal GUI Language GUI Language 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese,
French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian Hard Disk SATA 1 SATA Interface Capacity Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) External Interface Network Interface 1 RJ45 10M/100M selfadaptive Ethernet Interface USB Rear panel: 2 x USB2.0 RS485 N/A RS232 N/A Alarm In N/A Alarm Out N/A Power Supply DC 52V/1.8A PoE Interface 10M/100M selfadaptive Ethernet Interface MaxPower Max 30W for single port, Max 75W in total Supported Standard IEEE 802.3at, IEEE 802.3af Working Environment Working Temperature -10 °C ~ 55 °C (14 °F ~ 131 °F) Working Humidity ≤ 90% RH (noncondensing) Power Consumption (without HDD) ≤ 9W Certification Certification CE;FCC;UL;RoHS;WEEE CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 FCC Part15 Subpart B
